Key Selling Points
- Dual-Lock Vibration-Proof Safety System: Equipped with high-grade bolt, heavy-duty nut and stainless steel cotter pin, eliminating loosening risks under long-term mechanical vibration, fully compliant with power grid safety operation standards.
- Precision Right-Angle Articulation Design: Optimized Z-shaped structure enables flexible angle adjustment between tower crossarm and insulator string, perfectly adapting to complex installation conditions of 10kV-500kV overhead transmission lines.
- Full Hot-Forged Structural Integrity: Manufactured via one-piece hot forging of premium carbon steel, achieving uniform material density and stable maximum failing load (MFL), avoiding hidden dangers of welding connection.
- ISO 1461 Certified Corrosion Resistance: Full-surface hot-dip galvanized finish meets ISO 1461 international standard, with minimum uniform zinc coating thickness, ensuring decades of service life in coastal, desert and high-humidity harsh environments.
Product Description

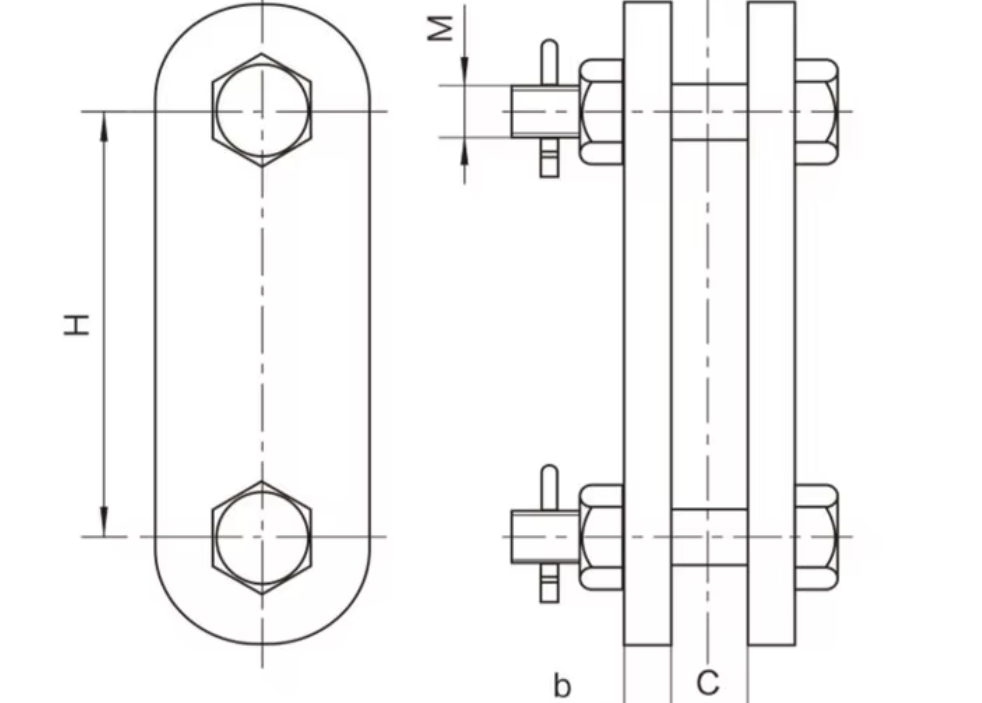

The Z-Type Clevis Link is a core universal connecting fitting for overhead transmission and distribution power lines, designed to establish a reliable mechanical connection between tower crossarm plates, shackles, tension clamps and insulator strings. Our clevis features a built-in rotational freedom design, which effectively buffers stress concentration caused by load angle changes during line operation. Adopting standardized assembly configuration, it realizes quick on-site installation without additional accessory matching, widely recognized by power utility companies in Africa, Southeast Asia and other emerging markets. All products strictly follow IEC 61284 and ANSI C135.3 standards, with complete test reports on mechanical performance and corrosion resistance, supporting third-party inspection to meet global high-voltage network procurement requirements.

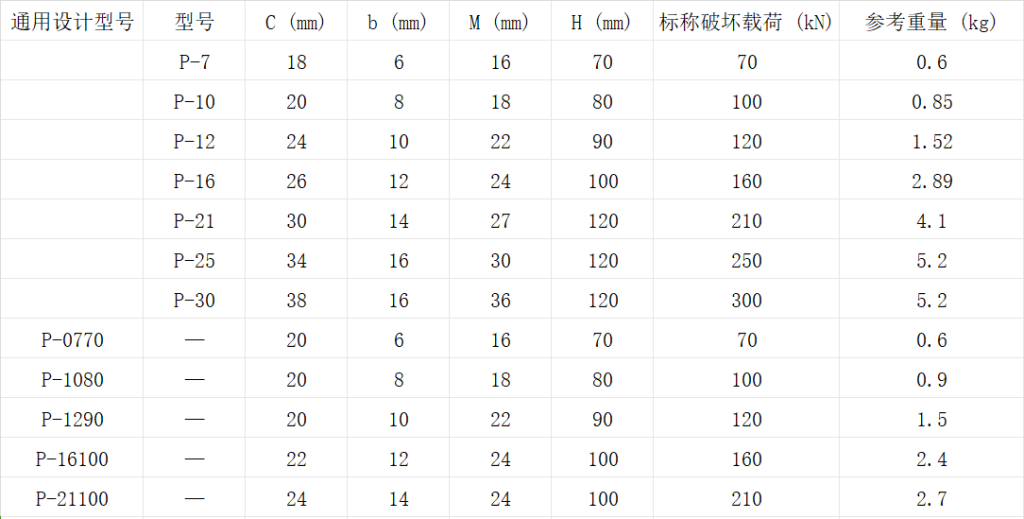

Technical Parameters
