Key Selling Points
- The clamp’s curved “saddle” or “boat” body is precision-engineered to match the conductor’s diameter. This design ensures a large contact area, distributing holding pressure evenly and minimizing stress concentration points that could lead to conductor fatigue or damage over time.
- Aluminum alloy construction makes our clamps significantly lighter than traditional cast iron models, reducing the overall load on transmission towers and simplifying installation. Despite its light weight, it maintains a high safety factor, with a rated mechanical strength that far exceeds industry standards (e.g., GB/T 2314).
- Universal Installation Interface: Equipped with a versatile U-bolt and hanger design, it is compatible with various tower structures. This allows for quick assembly and disassembly, reducing construction difficulty and maintenance costs.
Product Description
The XGF series drop-type suspension clamp is a cornerstone component in modern overhead transmission systems. Its primary function is to securely suspend conductors or shield wires from the insulator strings on straight-line towers. The “drop-type” design, where the conductor hangs naturally below the clamp body, is the industry standard for its simplicity, reliability, and ability to accommodate conductor movement due to wind or thermal expansion.

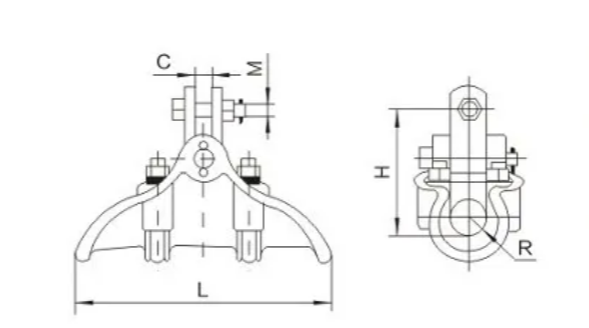

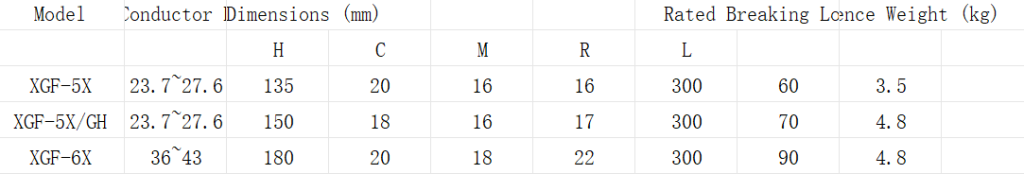

Technical Specifications
