xcs series vertical twin conductor suspension clamp for overhead transmission lines
Key Selling Points
  • Dual Conductor Support: Independent upper and lower clamps hold two vertically arranged conductors, suitable for twin-bundle conductor layouts to enhance line current-carrying capacity.
  • High Strength & Lightweight: Made of high-strength aluminum alloy/malleable cast iron, with hot-dip galvanized surface for over 15 years of corrosion resistance. Weighs only 1/3 of same-spec cast iron clamps, reducing tower load.
  • Easy Installation: Central hanging plate with standard pin holes connects directly to insulator strings, no extra on-site assembly required, saving construction time.

Product Description

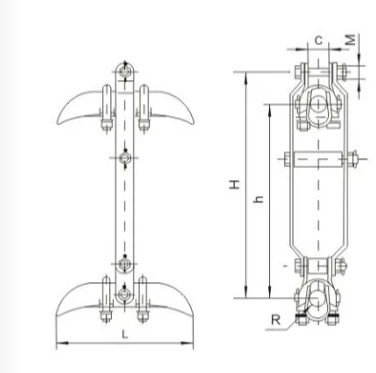

The XCS Series Vertical Twin Conductor Suspension Clamp is a specialized power fitting engineered for high-voltage overhead transmission lines (220kV and above). Featuring a robust dual-clamp structure, it is designed to securely suspend two vertically arranged conductors simultaneously. This clamp ensures exceptional stability for jumper loops or straight-line spans under extreme conditions such as heavy wind, ice loading, or seismic activity, effectively mitigating conductor galloping and enhancing overall grid reliability.

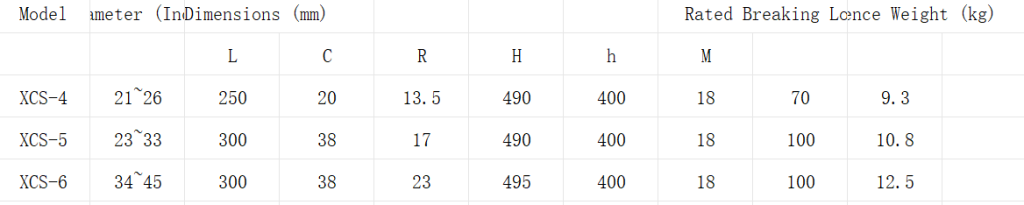

Technical Specifications

xcs series vertical twin conductor suspension clamp for overhead transmission lines
xcs series vertical twin conductor suspension clamp for overhead transmission lines
