Highlights / Key Features
- Self-Adjusting Wedge: The internal wedge system automatically grips the cable tighter as the tension increases, preventing slippage.
- Insulation Safe: No need to strip the cable jacket. The smooth internal surface protects the insulation from damage.
- Tool-Free Installation: Simple and fast installation without any additional tools, significantly reducing labor costs.
- Weatherproof: Made of UV-stabilized polymer and stainless steel bail for maximum corrosion resistance and durability.
Product Description
Headline: Reliable Anchoring Solution for Low Voltage Overhead Lines

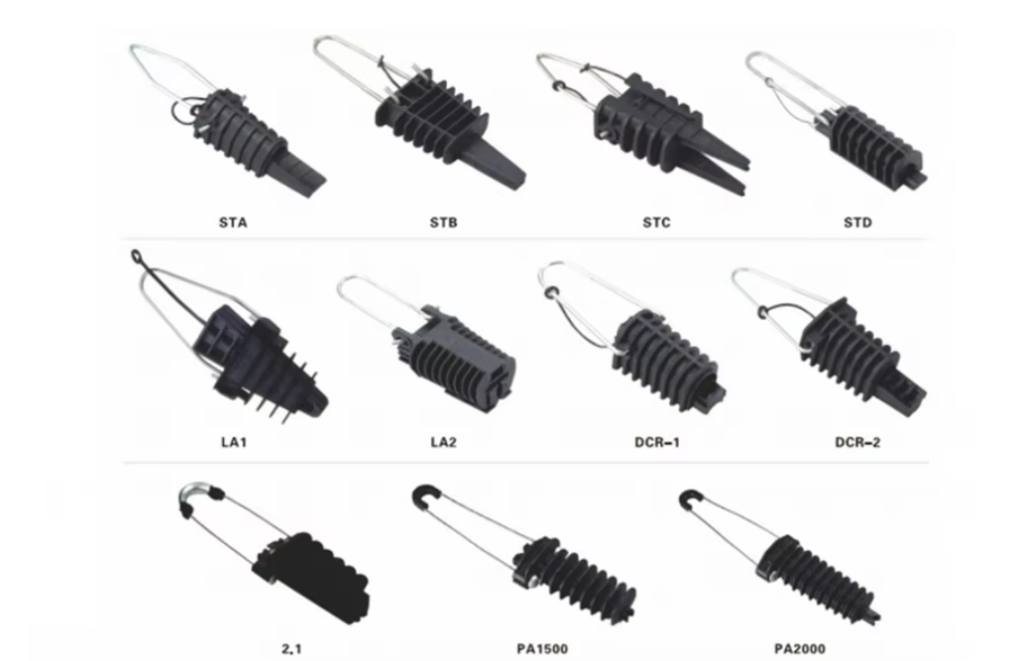

Our PA series Plastic Anchor Clamps are specifically designed to anchor and tighten insulated service lines with 2 or 4 conductors. Whether you are working on telecommunication projects in Southeast Asia or power distribution in Africa, this clamp provides a secure, dead-end connection on poles or walls.
The wedge-type design automatically tightens under tension, ensuring the cable stays in place even under extreme weather conditions. The high-quality thermoplastic material provides excellent insulation and mechanical resistance, making it an essential component for any LV-ABC (Low Voltage Aerial Bundled Cable) installation.
Technical Specifications
| Item | Technical Data |
| Installation Type | Tool-Free Wedge Tensioning |
| Model Number | PA-25 / DCR-2 Series |
| Applicable Cable | 2x16mm² – 2x25mm² (2-Core ABC) |
| Body Material | UV-Stabilized Reinforced Nylon PA66 |
| Wedge Material | Weather-Resistant Thermoplastic |
| Bail/Hook Material | Stainless Steel or Galvanized Steel |
| Minimum Breaking Load | ≥ 2.0 KN (Up to 15KN for PA-1500) |
| Standard Compliance | NFC 33-041 / EN 50483-2 |
| Operating Temperature | -40°C to +80°C (High Heat Resistant) |
