Key Selling Points
- High conductivity, low contact resistance, anti-oxidation for long service life
- Compatible with different wire diameters, large contact area, strong anti-creep performance
- Galvanized bolts, corrosion-resistant, suitable for outdoor high temperature, humidity
- Ideal for non-load-bearing connection and T-branch of copper conductors in overhead power lines
Product Description

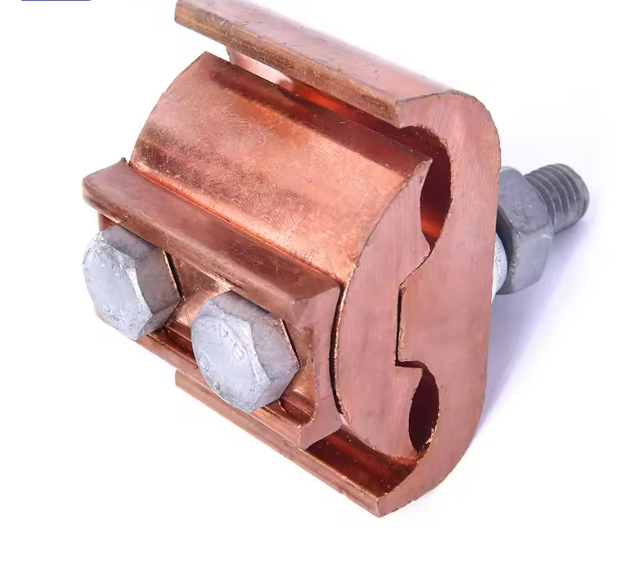

JBTY copper special-shaped parallel groove clamp is a high-quality electrical connector for overhead power lines. Made of premium T2 red copper, it features high conductivity, low contact resistance and excellent anti-oxidation. The special-shaped groove design fits different wire diameters, ensuring stable connection. With integrated parts and galvanized bolts, it is easy to install, durable for harsh outdoor environments, and ideal for non-load-bearing and T-branch connections of copper conductors

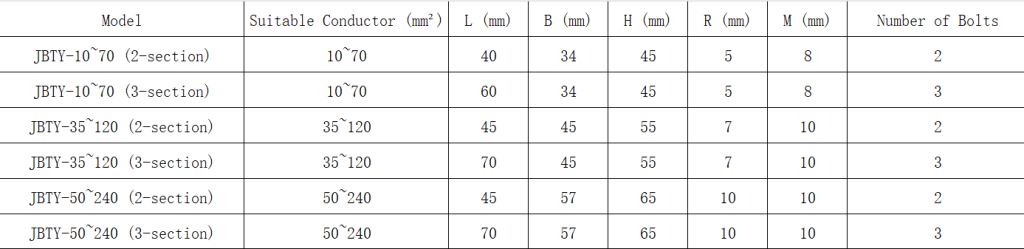

Technical Specifications
| Technical Item | Specification |
| Product Name | JBTY Copper Special-shaped Parallel Groove Clamp |
| Application | Non-load-bearing connection & T-branch of copper conductors in overhead power lines |
| Applicable Conductor Cross-section | 10-70mm² / 16-120mm² / 25-150mm² / 50-240mm² (Multiple models available) |
| Rated Voltage | 1kV / 10kV / 20kV (Optional) |
| Installation Method | Torque wrench tightening, no need to strip insulation (partial models) |
| Protection Level | IP65 (with matching insulation cover) |
| Corrosion Resistance | GB/T 2314-2008, IEC 61284, CE Certified |
| Optional Accessory | Insulation protective cover |
