Key Selling Points
- **Full IEC Compliance**: Strictly meets IEC 60305 standard, U-code matched for global cross-border power project compatibility
- **High Mechanical Stability**: 40kN~550kN rated breaking load, withstand extreme tension for overhead power lines
- **Premium Electrical Performance**: Excellent impulse & wet withstand voltage, anti-flashover for harsh polluted environments
- **Weather & Corrosion Resistant**: High-glaze porcelain body with galvanized fittings, long lifespan & low maintenance
Product Description
Technical Advantages

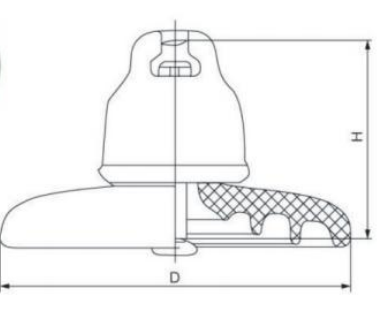

Crafted with high-strength industrial porcelain and hot-dip galvanized steel caps, the XP series covers **40kN to 550kN mechanical grades**, fully matching IEC standard U-codes (U40B/140 to U550B/240). Optimized creepage distance and impulse withstand voltage effectively reduce leakage current and flashover risks, ensuring stable grid operation under heavy rain, high humidity, or industrial pollution conditions.
Global Application Scenarios
– Suspension strings for 10kV~220kV high-voltage transmission lines
– Tension strings for substations, distribution networks and power stations
– Adaptable to rural, industrial, coastal and high-altitude environmental conditions
– Widely applied in Africa, Southeast Asia, Middle East and other emerging power markets

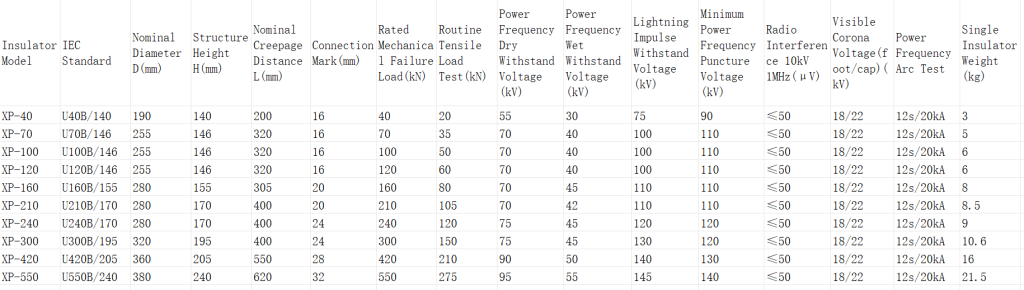

Technical Specifications
