Key Selling Points
- Superior Corrosion Resistance:Hot-dip galvanized coating (min. 86μm) as per ASTM A153, ensuring 30+ years of maintenance-free service.
- Lead Head Protection:The soft lead thread perfectly conforms to porcelain insulators, preventing stress cracks and ensuring a secure fit.
- High-Strength Forged Steel:Manufactured from high-tensile carbon steel (Q235/45#) with a Minimum Failing Load (MFL) of 10kN
- Complete Assembly :Supplied with heavy-duty hex nut and square/round washer for immediate cross-arm installation.
Product Description

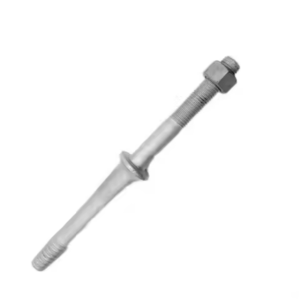

Premium HDG long shank insulator pins for 11kV-33kV lines. Lead head design, min 86μm zinc coating per ASTM A153. Factory direct pricing. Request a quote!
Technical Reference
| Parameter | Specification |
| Material | Forged Steel (Q235/45#) |
| Surface | Hot Dip Galvanized (HDG) |
| Thread Type | 1″ (25.4mm) ANSI Lead Head |
| Included | 1 Hex Nut + 1 Washer |
| Customization | Available upon technical drawing |
| Reference Standard | ANSI C29.1 / BS 3288 / IEC 60383 |
