Key Selling Points
- Full-Range Load Compatibility: Covers rated failure loads from 70kN (PS-7) up to 500kN (PS-50S), matching all distribution and transmission line voltage classes.
- Precision Forged Structure: Hot-forged high-grade carbon steel eliminates material defects, ensuring uniform load distribution and superior fatigue resistance under dynamic line forces.
- ISO 1461 Compliant HDG Protection: Thick, uniform hot-dip galvanized coating delivers long-term corrosion resistance, ideal for coastal, industrial, and harsh outdoor environments.
- Standardized Interchangeability: Designed to meet GB/T 2314 and IEC 61284 standards, compatible with all common shackles, clevis fittings, and insulator assemblies.
- Complete Assembly Ready: Each unit includes the forged plate, high-tensile bolt, heavy-duty nut, and stainless steel cotter pin for immediate field installation.
Product Description

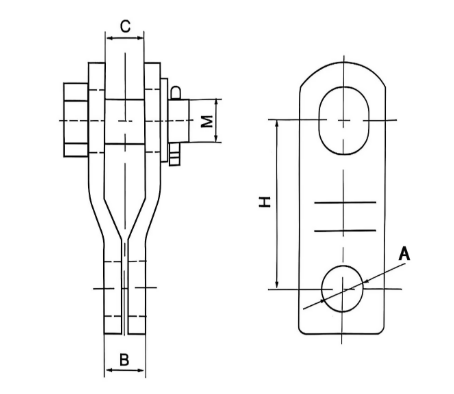

The PS-Type Parallel Clevis Plate is a foundational connection fitting for overhead power transmission and distribution systems, engineered to create stable parallel links between tower cross-arms, shackles, and insulator strings. Its three-hole structure enables balanced load transfer while allowing flexible adjustment of assembly length without altering connection orientation. Manufactured via precision hot forging from high-strength carbon steel, these plates undergo rigorous mechanical testing to meet or exceed specified failure load requirements. The full assembly includes all necessary hardware, eliminating on-site preparation and ensuring a secure, vibration-proof connection. With ISO 1461-certified hot-dip galvanizing, the plates provide decades of reliable service even in highly corrosive environments. Available in standard and special variants (D/S suffix models), the PS series caters to custom dimensional and load requirements for utility projects worldwide.

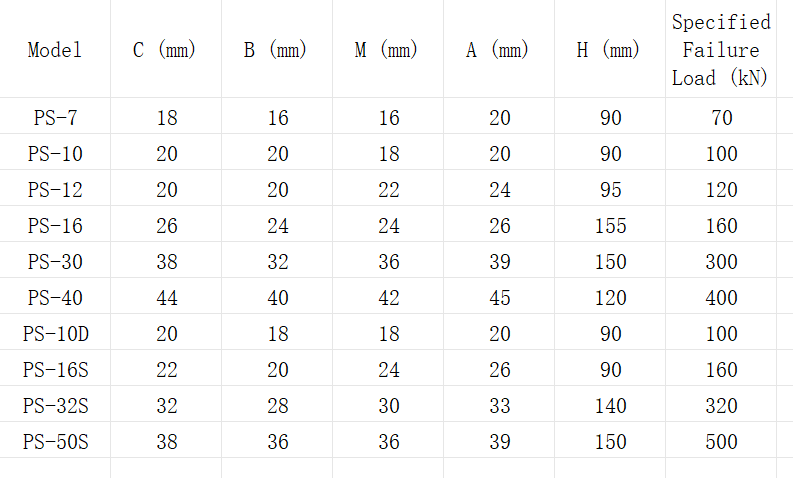

Technical Specification
