One-Person Operation:No team or extra tools needed.
Superior Cable Protection:Damage-free hydraulic design.
High Efficiency:Quick tightening and time-saving.
Reliable Connection:Safer than traditional bolted clamps.
Product Description

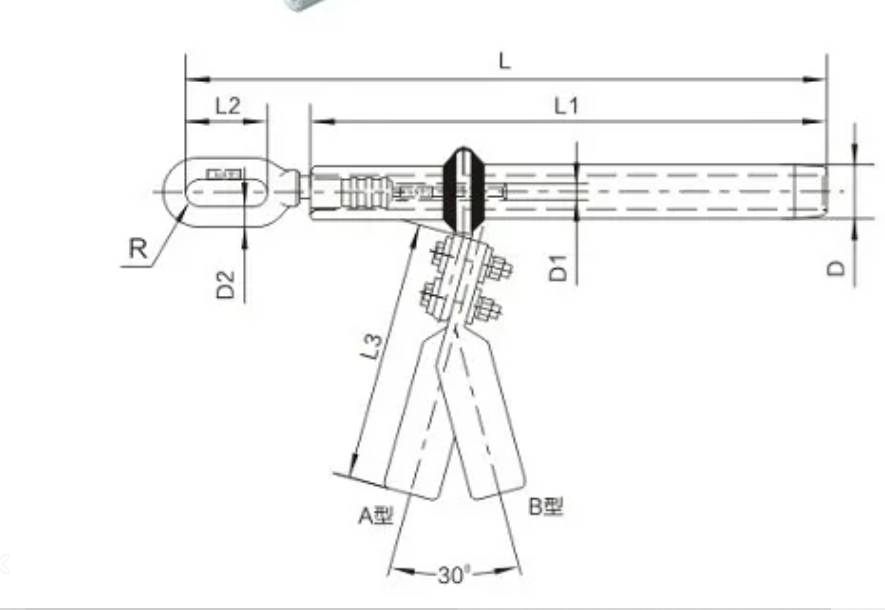

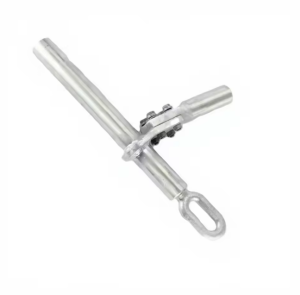

NY Series Hydraulic Compression Dead-End Clamp
Seamless Hydraulic Connection: The hydraulic compression process fuses the aluminum tube and conductor into a single unit, ensuring high mechanical strength and excellent electrical conductivity.
Global Standards Compliance: Fully complies with DL/T 757 and meets international technical requirements including IEC, BS, DIN, GB, and ANSI.
Premium Materials: Features a high-density extruded pure aluminum body and a hot-dip galvanized steel anchor for superior durability.
Broad Compatibility: Designed primarily for ACSR, with available models for AAAC, ACAR, and specialized alloy conductors.
Reliable Performance: Utilizes constant-pressure hydraulic crimping for a secure, permanent connection.
Primary Application: Used to anchor and fix conductors or lightning arresters to tension insulator strings on tension towers.
