aluminum wedge type strain clamp nxjg series – for 35–240mm² aac/aaac conductors, 1kv/10kv overhead line dead end anchoring
Key Features
  • Four standardized models (NXJG-1 to NXJG-4) cover 35–240mm² conductors, rated for 1kV/10kV system
  • Self-locking wedge mechanism: grip force increases with tension, ensuring zero slippage and ≥95% UTS holding strength
  • Die-cast aluminum body: 60% lighter than cast iron, anodized surface resists salt spray and humidity

Product Description

The NXJG series wedge strain clamps are critical hardware for overhead distribution lines, designed for permanent anchoring of AAC/AAAC conductors at dead-end, angle, and strain poles. Manufactured via precision die-casting for structural integrity, the internal wedge generates high friction through radial compression, reliably withstanding full conductor tension. Precisely graded by voltage and cross-section, they ensure quick, error-free installation—ideal for urban/rural grid upgrades and renewable energy collector systems requiring long-term reliability.

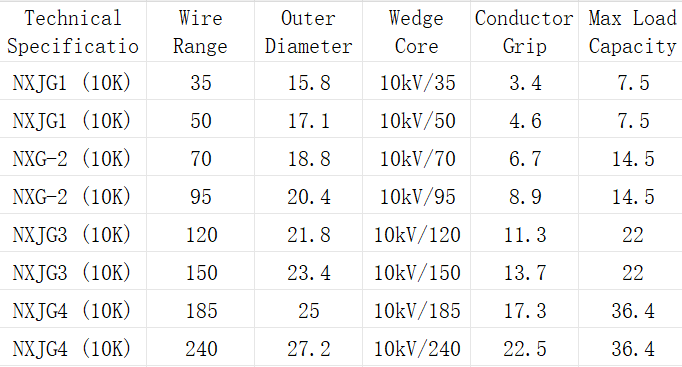

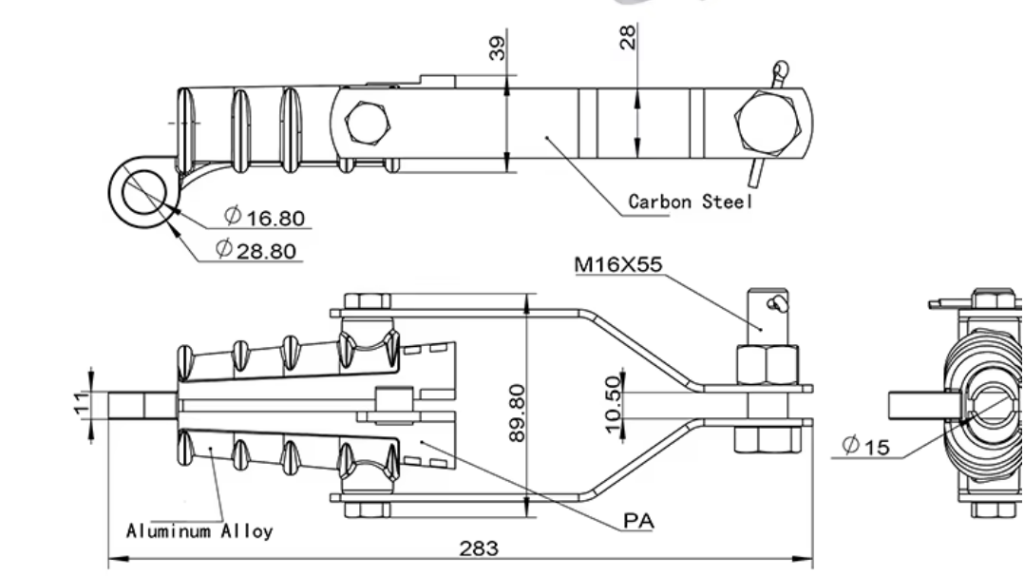

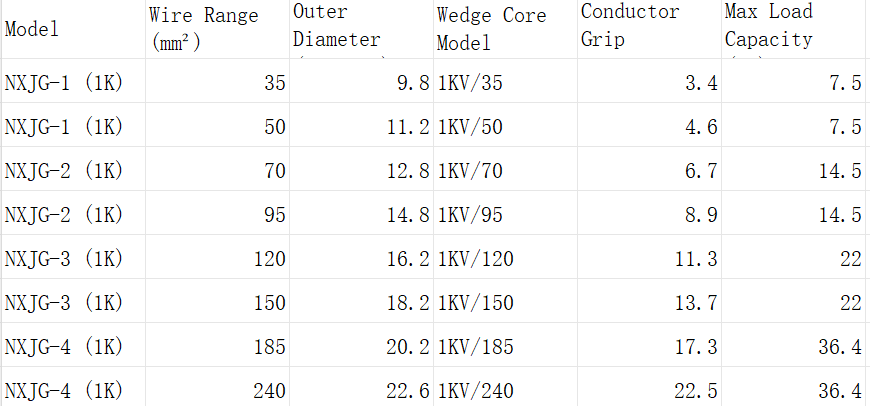

Technical Specifications

aluminum wedge type strain clamp nxjg series – for 35–240mm² aac/aaac conductors, 1kv/10kv overhead line dead end anchoring
aluminum wedge type strain clamp nxjg series – for 35–240mm² aac/aaac conductors, 1kv/10kv overhead line dead end anchoring
aluminum wedge type strain clamp nxjg series – for 35–240mm² aac/aaac conductors, 1kv/10kv overhead line dead end anchoring
